Photo Album: Wall Anchors in Cincinnati, OH

This Cincinnati, OH, bi-level basement had a wall that was bowing inwards. To fix the problem, we suggested a helical tie-back solution to pull the wall back with anchors, which horizontally screw into the soil surrounding the home. Our tieback anchors take up less space than our beams, which many homeowners appreciate the tieback system for. This particular customer certainly enjoyed that this system was able to stabilize their home's back wall without taking up too much space inside of the basement. If you want to learn more about our tieback wall anchor system, then be sure to scroll though the photos below.

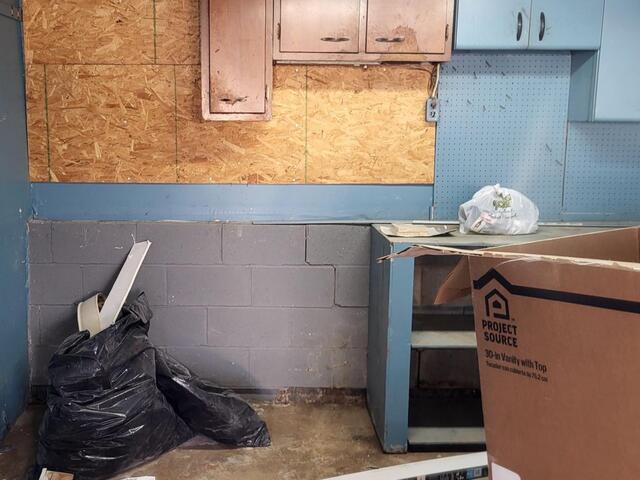

Bowing Wall in Cincinnati, OH

The crack in the brick in this photo was evidence that the wall was shifting inwards towards the basement floor. This photo was taken upon the initial inspection before we started any work. As you can see, the block wall was only 4 blocks high, so we couldn't use our vertical beam system. Instead, we had to go horizontal with our tieback system.

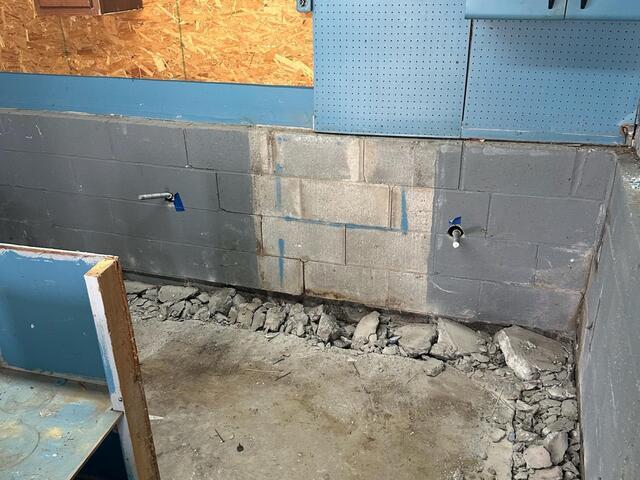

Wall Repair in Cincinnati, OH

This photo was taken after we drilled the rods through the wall into the soil outside the home. We also jackhammered part of the floor around the perimeter of the basement to make room for our WaterGuard subfloor drains. By screwing the helical rods horizontally into the soil surrounding the home, we were able to pull the wall back by utilizing the counteractive force of the soil.

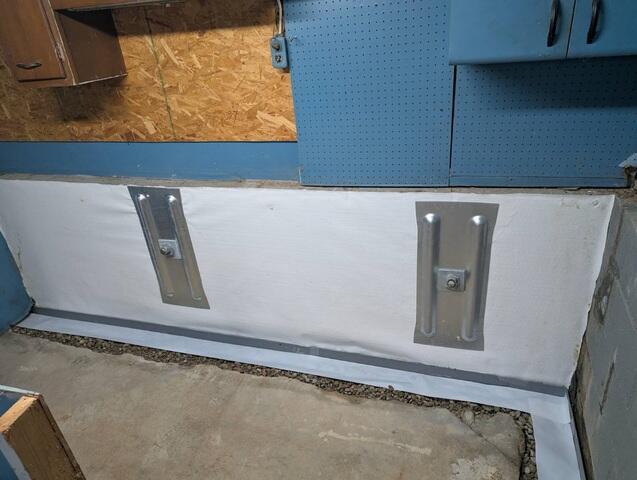

Wall Stabilization in Cincinnati, OH

This photo was taken after we secured the wall back by installing the anchor plates, covered the wall with our CleanSpace vapor barrier, and fitted the floor with our WaterGuard french drains.

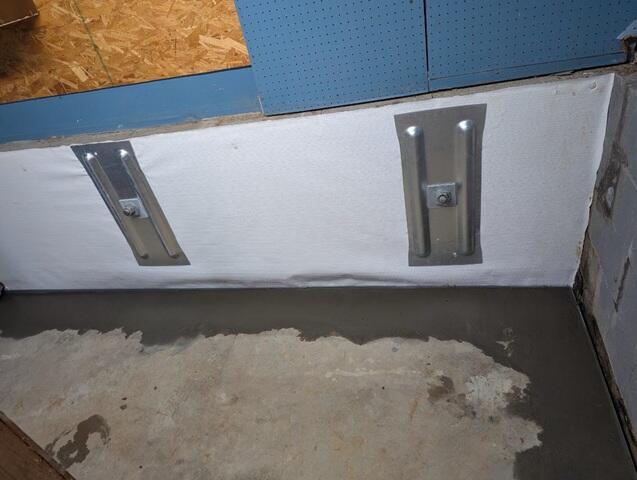

Foundation Repairs in Cincinnati, OH

This photo was taken after we covered the french drains with a new layer of concrete.

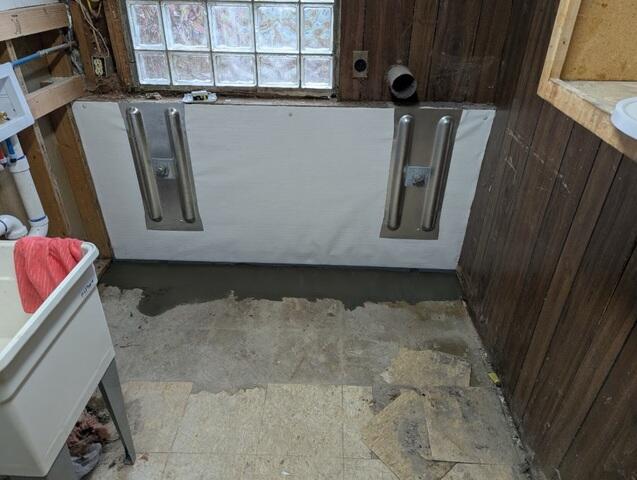

Wall Plates in Cincinnati, OH

We also tied back this part of the wall. If we used our PowerBrace solution for this job, we would have blocked the window.

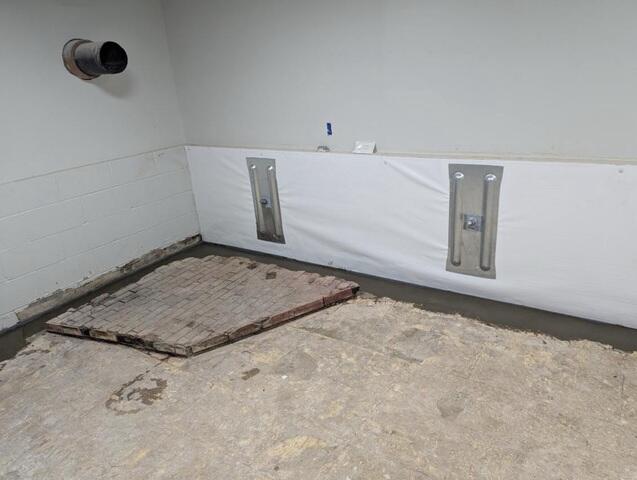

Geo Wall Anchors in Cincinnati, OH

We then plated the same wall in a different room, as seen by this photo. These wall anchors don't take up much space and will allow the homeowner to put up some drywall.
